Selecting the appropriate viscosity of Hydroxypropyl Methylcellulose (HPMC) is critical for achieving optimal performance in your applications. Whether you’re working in construction, pharmaceuticals, food production, or personal care, the viscosity of HPMC directly impacts product quality and functionality. This article addresses the common challenge many purchasing managers face: determining which HPMC viscosity grade will deliver the best results for specific applications. We’ll guide you through the selection process, helping you make informed decisions that balance performance requirements with cost considerations. With decades of experience supplying HPMC to various industries, we understand the technical nuances that make all the difference in your formulations.

1. What is HPMC and Why is Viscosity Important?

Hydroxypropyl Methylcellulose (HPMC) is a semi-synthetic, non-ionic cellulose ether derived from cellulose through chemical modification. This versatile polymer consists of cellulose backbones with hydroxypropyl and methyl substituents, giving it unique properties across multiple industries. HPMC is prized for its solubility in both hot and cold water and film-forming capabilities.

But here’s the thing: viscosity stands as the most critical parameter when selecting HPMC for your application. Viscosity refers to the material’s resistance to flow and directly determines how HPMC will perform in your specific use case. The viscosity of HPMC solutions depends primarily on the polymer’s molecular weight—higher molecular weight results in higher viscosity at the same concentration.

When HPMC dissolves in water, its polymer chains extend and interact with water molecules, creating a network that increases solution viscosity. This thickening effect is fundamental to many applications, from providing the right consistency in cement mortars to controlling drug release rates in pharmaceutical tablets.

Industries rely on specific HPMC viscosity grades to achieve desired performance characteristics. Construction applications typically require medium to high viscosity grades for water retention and workability. Pharmaceutical companies select precise viscosity grades to control drug release profiles. Food manufacturers use specific grades to achieve the right texture in products.

2. What Factors Influence HPMC Viscosity Selection?

Selecting the optimal HPMC viscosity involves considering multiple factors that affect both the polymer’s behavior and your application requirements.

Molecular weight and substitution degree are fundamental factors determining HPMC viscosity. Higher molecular weight HPMC grades contain longer polymer chains that create greater entanglement in solution, resulting in higher viscosity. The degree of substitution—specifically the ratio of hydroxypropyl to methyl groups—also impacts viscosity and other properties like gelation temperature.

You should know that temperature dramatically affects HPMC viscosity behavior. Unlike many polymers, HPMC exhibits inverse solubility—its viscosity decreases with increasing temperature until reaching a critical point called the gelation temperature. At this point, the polymer undergoes phase separation and forms a gel.

Concentration plays a critical role in viscosity development. HPMC viscosity increases exponentially with concentration, not linearly. This means small changes in concentration can result in significant viscosity differences. For example, increasing HPMC concentration from 2% to 3% might double the solution viscosity, depending on the grade.

Shear rate dependency is another crucial consideration. HPMC solutions typically exhibit pseudoplastic (shear-thinning) behavior—their viscosity decreases under higher shear rates. This property is beneficial in applications like spray coating, where the material flows easily during application but recovers viscosity afterward to prevent sagging.

Processing equipment limitations must also factor into your selection. High-viscosity grades may require more powerful mixing equipment and longer processing times.

3. How Do Different Applications Require Specific HPMC Viscosity Grades?

Different industries and applications have unique requirements that dictate the optimal HPMC viscosity grade.

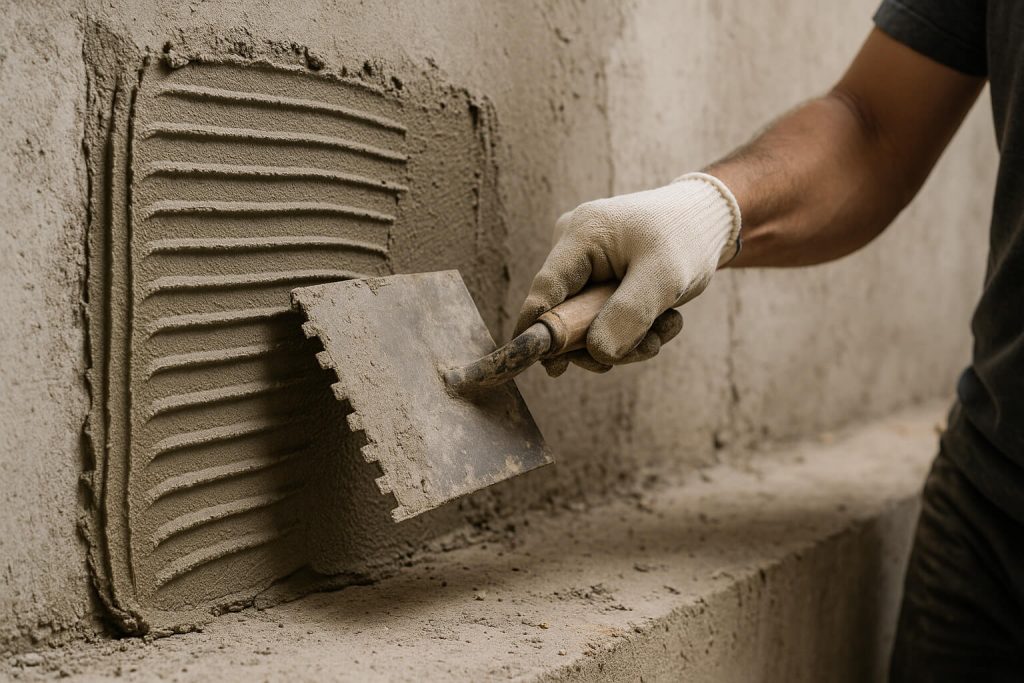

In the construction industry, HPMC serves as a critical additive in dry-mix mortars, tile adhesives, plasters, and self-leveling compounds. Water retention is a primary function of HPMC in these applications, ensuring proper cement hydration and preventing rapid water loss to porous substrates.

Here’s what matters: For tile adhesives, medium to high viscosity grades (15,000-100,000 mPa·s) provide excellent water retention and sag resistance. Plasters typically require medium viscosity grades (10,000-30,000 mPa·s) for good workability and adhesion. Self-leveling compounds benefit from lower viscosity grades (4,000-15,000 mPa·s) that promote flow while maintaining stability.

Pharmaceutical applications utilize HPMC for tablet coating, controlled release matrices, and as binding agents. The viscosity grade directly impacts drug release profiles and manufacturing processes.

For immediate-release tablet coatings, low viscosity grades (3-15 mPa·s) provide thin, uniform films that dissolve quickly. Controlled-release formulations typically employ higher viscosity grades (100-100,000 mPa·s) to create gel matrices that regulate drug diffusion rates.

The reality is that paint and coating applications have specific viscosity requirements based on application method and desired finish. Spray applications require lower viscosity grades (5-15 mPa·s) for proper atomization, while brush-applied coatings benefit from medium viscosity grades (15-30 mPa·s) that reduce splatter and improve leveling.

4. What Testing Methods Should You Use to Verify HPMC Viscosity?

Accurate viscosity measurement is essential for quality control and ensuring your HPMC performs as expected in your application.

Standard viscosity measurement techniques for HPMC include rotational viscometry, capillary viscometry, and falling ball methods. The most widely accepted method for HPMC is rotational viscometry using either Brookfield or Rheometric instruments, which measure the torque required to rotate a spindle in the HPMC solution.

What you need to understand is that the testing conditions significantly impact measured viscosity values. Standard conditions for HPMC typically involve a 2% solution in water at 20°C, but your specific application may require testing under different conditions that better reflect actual use.

Laboratory testing protocols should follow established standards such as ASTM D2363 or USP methods. These protocols specify sample preparation, temperature control, spindle selection, rotation speed, and equilibration time. For HPMC, proper dissolution is critical—incomplete hydration leads to erroneous results.

Field testing options provide practical verification when laboratory equipment isn’t available. Simple methods include the slump test for construction applications, which measures the spread of a standard volume of material.

Common testing pitfalls include inadequate dissolution, improper temperature control, and using inappropriate spindle/speed combinations. HPMC requires complete hydration for accurate results—undissolved particles can significantly affect readings.

5. How Can You Troubleshoot Viscosity-Related Issues with HPMC?

Even with careful selection, viscosity-related problems can arise during formulation, processing, or application of HPMC-containing products.

Identifying common viscosity problems begins with recognizing the symptoms. Insufficient viscosity may manifest as poor water retention in mortars, premature drug release in pharmaceuticals, or inadequate thickening in food products. Excessive viscosity can cause processing difficulties or poor flow properties.

The truth is that many viscosity issues stem from improper dissolution. HPMC requires specific dissolution techniques—typically dispersion in hot water followed by cooling for complete hydration. Incomplete dissolution results in lumps, inconsistent viscosity, and poor performance.

Adjusting formulations to correct viscosity issues often involves fine-tuning the HPMC concentration. A 10-20% adjustment in concentration can significantly impact viscosity. Alternatively, blending different viscosity grades can achieve intermediate properties.

Environmental factors significantly affect HPMC performance. Temperature fluctuations can alter viscosity—higher temperatures reduce viscosity until reaching the gelation point. Humidity affects powder flow and dissolution rates. pH extremes can impact HPMC stability and performance, with optimal performance typically in the pH range of 3-11.

A construction company experienced inconsistent water retention in their tile adhesive formulation. Investigation revealed that their HPMC was being added directly to cold water, resulting in incomplete hydration. By implementing a hot water dispersion method, followed by cooling with continued mixing, they achieved consistent viscosity and improved water retention.

6. What Are the Economic Considerations When Selecting HPMC Viscosity?

Beyond technical performance, economic factors play a crucial role in HPMC viscosity selection.

Cost-performance analysis reveals that higher viscosity HPMC grades generally command premium prices due to their manufacturing complexity and enhanced functionality. However, these grades often allow for lower usage rates to achieve the same thickening effect. For example, a 100,000 mPa·s grade might cost twice as much per kilogram as a 10,000 mPa·s grade, but may require only one-third the concentration to achieve similar viscosity in the final application.

Think about this: Optimizing usage rates based on viscosity selection can significantly impact your overall formulation cost. Higher viscosity grades can often be used at lower concentrations, potentially offsetting their higher unit price.

Supply chain considerations and availability also factor into economic decisions. Lower and medium viscosity grades typically have broader supplier availability and more consistent pricing. Higher viscosity specialty grades may have limited suppliers, longer lead times, and greater price volatility.

Long-term performance benefits versus initial costs must be carefully evaluated. A slightly more expensive HPMC grade that provides enhanced performance may deliver significant downstream value through improved product quality, reduced customer complaints, or extended shelf life.

A pharmaceutical manufacturer switched from a 5 mPa·s to a 15 mPa·s HPMC grade for tablet coating. While the higher viscosity grade cost 20% more, it provided more uniform coating with fewer defects, reducing rejection rates from 3% to 0.5%. The resulting savings in rework and waste more than offset the increased material cost, delivering a 300% return on the additional investment.

When making economic evaluations, consider the total cost of ownership rather than just the purchase price. Factor in processing costs, quality costs, and customer satisfaction impacts.

Conclusion

Selecting the right viscosity of HPMC for your application requires balancing multiple factors, from technical performance requirements to economic considerations. The optimal choice depends on your specific industry needs, processing capabilities, and performance expectations. By understanding the fundamental relationship between HPMC viscosity and application behavior, you can make informed decisions that enhance product quality while managing costs effectively.

Throughout this article, we’ve explored how viscosity impacts performance across various industries, from construction to pharmaceuticals, food, and personal care. We’ve examined testing methods to verify viscosity specifications and troubleshooting approaches to address common issues. Finally, we’ve analyzed the economic implications of viscosity selection, demonstrating how the right choice can deliver substantial returns on investment.

For personalized guidance on selecting the optimal HPMC viscosity grade for your specific application, contact our technical team. With decades of experience across multiple industries, we can help you navigate the selection process and optimize your formulations for maximum performance and value.

FAQ Section

Q1: How does temperature affect HPMC viscosity during application?
Temperature has a significant inverse relationship with HPMC viscosity until reaching the gelation point. As temperature increases, HPMC solution viscosity decreases, typically by 5-10% for every 5°C rise. This effect continues until reaching the thermal gelation temperature (usually 65-90°C, depending on the grade), at which point the polymer undergoes phase separation and forms a gel. During application, this means products may flow more easily in warm environments but could become too fluid if excessively hot. For temperature-sensitive applications, consider selecting a grade with appropriate thermal gelation characteristics or adjusting the formulation to compensate for expected temperature variations.

Q2: Can I blend different HPMC viscosity grades to achieve custom properties?
Yes, blending different HPMC viscosity grades is a practical approach to achieving intermediate properties or optimizing performance. When blending, the resulting viscosity is not a simple linear average of the component grades. Typically, higher viscosity grades have a disproportionate impact on the final blend. For example, a 70:30 blend of 5,000 and 100,000 mPa·s grades might result in a viscosity closer to 30,000 mPa·s rather than the mathematical average. Blending can also help balance other properties beyond viscosity, such as dissolution rate and film formation. For best results, conduct small-scale tests to verify the blended performance before full-scale implementation.

Q3: What are the key differences between low, medium, and high viscosity HPMC grades?
Low viscosity HPMC grades (typically <5,000 mPa·s) dissolve more quickly, form thinner films, and provide less water retention. They excel in applications requiring rapid dissolution, good flow, and minimal texture modification, such as tablet coatings and spray applications. Medium viscosity grades (5,000-30,000 mPa·s) offer balanced properties with moderate water retention, film thickness, and binding strength. They’re versatile for construction mortars, personal care products, and food applications requiring moderate thickening. High viscosity grades (>30,000 mPa·s) provide maximum water retention, thicker films, and stronger binding capabilities. They’re ideal for applications demanding extended working time, significant thickening, or controlled release properties.

Q4: How do I determine the optimal HPMC concentration for my specific viscosity needs?
Determining the optimal HPMC concentration involves both calculation and empirical testing. Start by understanding the viscosity-concentration relationship for your selected grade—typically, viscosity increases exponentially with concentration. Begin with the manufacturer’s recommended concentration range for your application type, then prepare test batches at 3-5 different concentrations within this range. Measure both the viscosity and application-specific properties for each concentration. Plot these results to identify the point where performance requirements are met with minimal HPMC usage. Consider also the impact of other formulation ingredients that may enhance or reduce HPMC effectiveness. Finally, validate your selected concentration with full-scale production trials before implementation.

Q5: What quality control measures ensure consistent HPMC viscosity between batches?
Ensuring consistent HPMC viscosity between batches requires a comprehensive quality control approach. Start by establishing detailed material specifications with your supplier, including not just nominal viscosity but acceptable ranges, measurement conditions, and critical secondary parameters like substitution degree and particle size. Implement a robust incoming material testing program that verifies each batch against these specifications before use. Standardize your testing methodology, including sample preparation, dissolution procedure, temperature control, and measurement parameters. For critical applications, maintain reference samples from successful production batches for side-by-side comparison with new materials.
